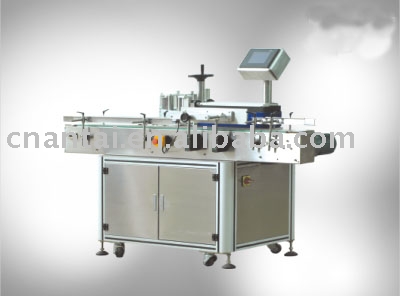

RGTB-01 Vertical Round Bottle Labeling Machine




RGTB-01 Vertical Round Bottle Labeling Machine

Quick Details
Place of Origin: Zhejiang China (Mainland) Brand Name: ANT Model Number: RGTB-01
Type: Labeling Machine Packaging Material: Paper Automatic Grade: Automatic
Condition: New Usage: packing
Specifications
suitable for the foodstuff, medicine ,cosmetics and other light industries of the round bottle label.
This labeling machine is suitable for the foodstuff, medicine ,cosmetics and other light industries of the round bottle label.
 Advance function, easy operation, structure compact. Adopt photoelectricity examine, PLC control, touch screen software operation, feeding, bottle wraping, bottle dispart are all stepless for speed adjust, label nicety; at the same time it has the function of no object no labeling, no label can revise by itself, and automatic to check.
This machine can using single label, and also can using with other packing machinery for automatic produce on line.
1. Machine Specification
Round bottle labeling machinelabel speed50-300bottle/min(according to bottle size and label length)
Conveyor belt speed5~60m/min
Reel bottle belt speed0~60m/min
The width of conveyor belt throughbottleF20~90mm
label out speed3~60m/min
label precision( not including packingunits and label error)0.5mm
Min length of label10mm
Total power1100W
PowerL/N/PE  220V 50Hz
Using condition temperature0-5oC
Using relative humidity15-90%

2. Label parameter
Label specs of labeling machine
a) Label paper adopt to Glassine paper(paper that can euphotic)
b) Paper thickness of label all of 25*10-6m(25m);
c) Paper rigidity of label fit company certificate;
d) Label quality need upto company's certificate then can using.
e) Label roll out diameter <Ø350; Label roll inner diameter is Ø76+0.50.

paper backing width ALabel width B
<100mm10-95mm
