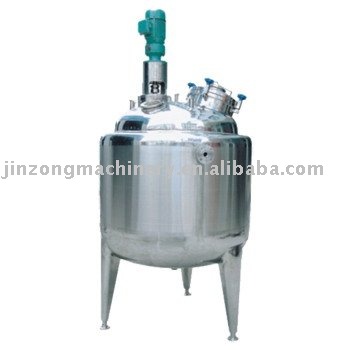

Pharmaceutical Machine: YFP series Collocation Tank,Concentrated-Collocation Tank,Diluter-Collocation Tank

Pharmaceutical Machine: YFP series Collocation Tank,Concentrated-Collocation Tank,Diluter-Collocation Tank

Quick Details
Place of Origin: Guangdong China (Mainland) Brand Name: JINZONG Model Number: YFP
Application: Liquid Type: Mixing Machine

Specifications
Pharmaceutical Machine:YFP Collocation Tank
1.Inner material SUS316L,outer SUS304.Inner finish 0.28-0.45um
2.Conform to GMP
Pharmaceutical Machine YFP series Collocation Tank,Concentrated-Collocation Tank,Diluter-Collocation Tank
DESCRIPTION:
A) The series tank has the functions of heating and heat preservation, manufactured, pressure-tested and checked in accordance with the .
B) The standard specifications from 100L to 7000L, and we can design and make as per customer's special requirements.
C) The sealing of mixing shaft is of mechanical seal of imported health class, the decelerator is from famous brand German FLENDER or SEW. The speed of mixer is 36-53 rpm, and also can be frequency control.
D) The joint is of quick-acting type in compliance with ISO standard. The inner tank is made of stainless steel 316L or 304.
E) On the tank's boby has respectively fluid level gauge(the mode is non-contact supersonic, static-pressure transmission or glass tube), breathing apparatus, sterilization steam opening, the rmometer(digital-indicated type or dial type), CIP universal tank-cleaning device, viewing mirror at lamp hole, some fluid inlets & outlets and herringbone hole.

CONFIGURATION
Decelarator (brand from Germany FLENDER or SEW)
Foldable micro pore film air filter(filtration of bacteria of 45 μ M and above)
Leakage-proof device(100%)
Interface for liquid level (static-pressure sensor type, supersonic type and glass tube level meter for altemative)
Interface of thermometer (temperature sensor)
Interface for gas exhaust and security valve(connected to breathing apparatus accompanied by aseptic filtration )Aseptic air interface for sterilization with steam and filtration
Cleaning ball (rotating for 360° Under low pressure )
Inlet and outlet for medicine liquid (quick-acting installation type)
Elliptic manhole
Viewing mirror
Lamp hole
Model#Specifications
(L)
Reference size(mm)Power
DD1HH1H2H3DN
YFP03-1001005007001700850450235320.37kw
YFP03-1501506008001750900450235320.37kw
YFP03-25025080010001800960450235320.55kw/0.75kw
YFP03-300300800100020001010460235320.55kw/0.75kw
YFP03-500500900110020501240640270400.55kw/0.75kw
YFP03-600600900110023151430830270400.55kw/0.75kw
YFP03-100010001100130025051580880270400.7kw/1.1kw
YFP03-1200120011001300265518001100270400.7kw/1.1kw
YFP03-1500150012001400327519001150270400.7kw/1.1kw
YFP03-2000200014001600327520501220280401.5kw/2.2kw
YFP03-2500250015001700313520501150280401.5kw/2.2kw
YFP03-3000300016001800325521701220280401.5kw/2.2kw
YFP03-4000400018002000338523001250280401.5kw/2.2kw
YFP03-5000500019002100367525501450320502.2kw
YFP03-6000600021002300372526001400320503kw
YFP03-7000700022002400381526901450320503kw
