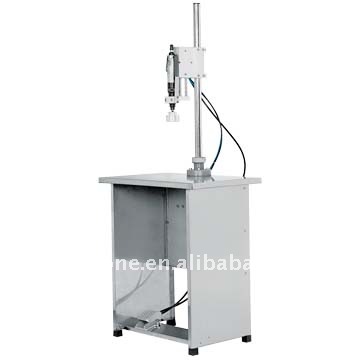

Semi-Automatic Capping Machine with working table

Semi-Automatic Capping Machine with working table
Quick Details
Place of Origin: Shanghai China (Mainland) Brand Name: Saidone Model Number: TA
Type: Capping Machine Packaging Material: Plastic Automatic Grade: Semi-Automatic
Application: Food, Chemical, Medicine, etc. Condition: New Packaging Type: Bottles
Driven Type: Electric and Pneumatic Quality Management System: ISO9001:2008 On-site Management System: 5S

Specifications
Our Semi-automatic Cappers are designed to handle most bottle types, including PET, PVC, plastic, and glass.
Our Semi-automatic Cappers are designed to handle most bottle types, including PET, PVC, plastic, and glass. Because both the chuck height and the torque can be adjusted, a single machine can be used to tighten a variety of bottle caps of different sizes. The cappers have a simple and subtle design and can be installed on conveyors and working tables easily. An operator is required to place caps on the bottles, push the footpad, and then the capper can secure the caps onto the bottles automatically. The machine can effectively reduce operator fatigue and keep the tightening torque consistent.

Options include:
Stainless steel worktables of varying sizes. We can custom make the tables according to your specifications.

Technical Specifications:
Cap Dia.:                          10 - 90mm
Speed:                             About 30cpm
Main Body Weight:            6.5kg
Air Pressure:                    Between 4.5kg/cm2 and 6.2kg/cm2
Air Consumption:              0.08m3/min
Quick Connection Clip:     M 8
Clutch:                            12 grades of adjustable torque
