Full automatic flute laminator machine


Quick Details
Place of Origin: Hebei China (Mainland) Brand Name: baoli Model Number: 1300mm
Type: Laminating Machine Packaging Material: Paper Automatic Grade: Automatic
Power: 12kw Application: Machinery & Hardware Condition: New
Packaging Type: Cartons Driven Type: Electric
Specifications
Introduction
automatic Carton flute laminating machine are designed for laminating cardboard and cardboard, cardboard and corr
Introduction
automatic Carton flute laminating machine are designed for laminating cardboard and cardboard, cardboard and corrugated board (Flute shape A, B, C, D, E, F and N), 3-layer, 5-layer, or 7-layer corrugated paperboard all can be laminated smoothly and accurately. Famous internal or foreign foreign manufacturers make all the main components with long service life and excellent stability. Electrical components of internationally known brands are adopted to ensure reliability of running.
This machine features stability, high precision, easy operation, saver of time and labour, maintenance of convenience, etc.

 Characteristics
1. Automatic Flute Laminating machine adopts chain pusher and back registration system together with spring blade side lay and vacuum sucking conveying system makes this series of machine fit for a larger range of paper, high precision while remaining the features of easy operation and maintenance.
2. The core designed rubber roller together with knurled steel roller enhances the evenness of gluing, strength of stickiness, as well as lowering the production cost.
3. Balance-tested rollers, tight assembling technique, plus timing and tooth belt driving mechanic system makes the machine runs at low noise with high precision.
4. The machine adopts automatic glue supply and recyclable glue circulating system.
5. Self-developed high-strength feeder compliant with high configuration electric system makes the machine run at low malfunction and stable. The electric parts used are all world wide available brand or well-known Chinese brand.
6. All material are inspected according to ISO-9001 standard and the key parts such as the harmonic gear and bearings are imported ones.
7. The bottom sheet for this machine can be A, B, C, D, E, F flute corrugated sheet. It can do 3 or 5 ply board to sheet lamination or board to board lamination. The range for top paper can be 200-600 GSM with top paper advance or alignment function.
Detail Parameters
Model
1300
1450
1600
Maximum size(W×L)
1300×1100mm
1450×1100mm
1600×1400mm
Minimum size(W×L)
350×350mm
350×350mm
450×450mm
Laminate precision
≤±1.5mm
≤±1.5mm
≤±1.5mm
Speed
6000s/min
6000s/min
6000s/min
Total power
12kw
12kw
13kw
L*W*H( m)
12.5*2.15*2.6
12.5*2.3*2.6
12.6*2.45*2.6
Total weight
6.8T
7.2T
8.0T

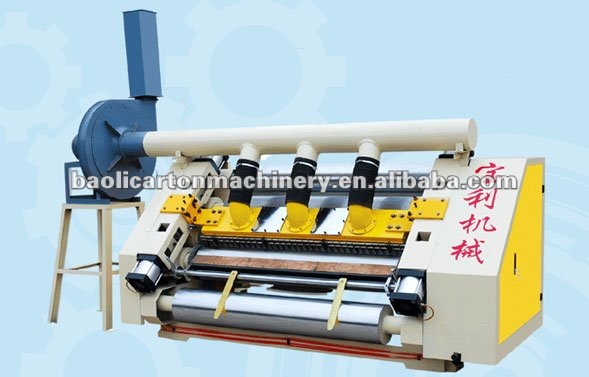

Full automatic flute laminator machine
