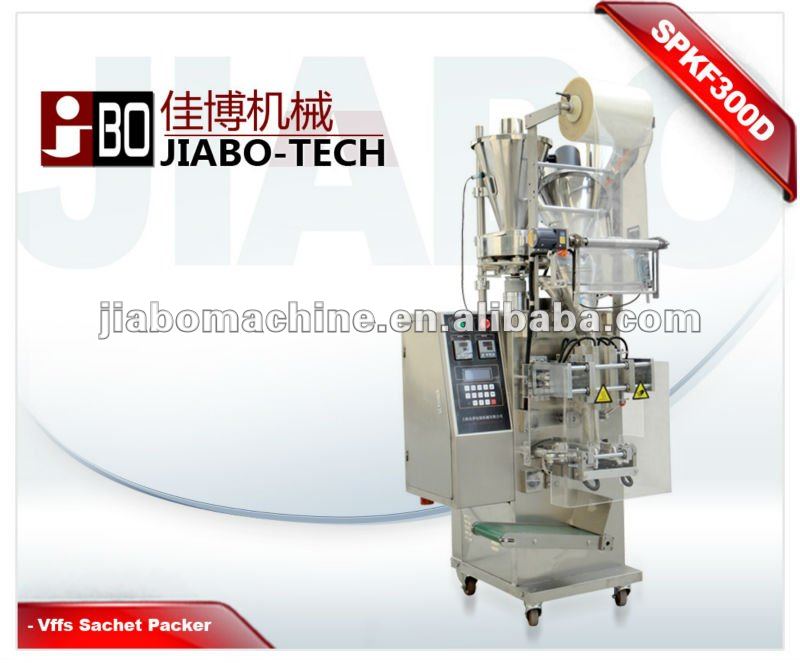

medicine powder packaging machine, 40*2sachets/minute

medicine powder packaging machine, 40*2sachets/minute
Quick Details
Place of Origin: Zhejiang China (Mainland) Brand Name: JIABO Model Number: SPKF300D
Type: Packing Machine Packaging Material: Plastic Automatic Grade: Automatic
Power: 2.0Kw Application: Food Condition: New
Packaging Type: bags, sachets, pouches Driven Type: Mechanical Working Principle: Vertical Form Fill Seal
Specifications
VFFS Packer
with auger filler+volume cup filler
40*2sachets/min, four side sealing sachet
coca powder+medicine powder
Applications:
This is a vertical form fill seal machine, installed with auger filler+cup filler. it is applicable for packing non free flowing powder+free flowing granule into twin-sachet.
This machine is called duplex or two-lane machine, can pack two kind of different material into twin-sachet with doulbe capacity of 70-90sachets/minute. This machine is very popular used in food and pharmaceutical area.

Main Technical Parameters:
Model
SPKF300D
Sealing type
Four Side Sealing Sachet
Sachet Length
Length:30-170mm (Adjustable)
Sachet Width
Width: 30-75mm (Adjustable)
Speed range:
(30-45)*2 sachets/minute
Filling Capacity
0-5ml, 5-20ml, 20-50ml, 30-100ml,
Power
220V/380V,50/60HZ,2.0Kw
(According to customer’s requirement)
Weight
250Kg
Dimension
L930Xw730xH1700mm

Thursday, 29 March 2012

medicine cap lining machine


medicine cap lining machine
Quick Details
Place of Origin: Guangxi China (Mainland) Brand Name: SEAL Model Number: SR-CL-IIII
Type: Cap liner cutting and inserting machine m... Packaging Material: Wood Automatic Grade: Automatic
Application: cap liner cutting and inserting ma... Condition: New Packaging Type: cap liner
Driven Type: Electric

Specifications
1)PLC control
2)130 caps per min
3)Elevating pre-feeder
4)Costom designs
medicine cap lining machine

medicine cap lining machine SR-CL-IIII

General Description
 The fully automatic cap lining machine will die-cut disk and pesh it into cap,eliminating the contamination due to manual insertion,increasing your productivity.It is ideal for pharmaceutical,food,beverage,electronic & mechanic industries ,and many others.


The system including

Elevating pre-feeder to receive caps from cap supplier.
Cap stoter to orient caps opening up.
Cap chute to insure constant flow of caps into lining machine.
Cap lining machine will die-cut disks from reel ,and push the disks into the caps.
Reel unwinder to unwind material.
PLC control entire system.

Features:
Safety gurads-electric interlock.
Up to 130 caps per minute or better.
Gravitational chute to reduce air consumption.
Quick changeover from one cap siae to anther.
*Costom designs are available.


Wednesday, 28 March 2012

vacuum Medicine packing machine


vacuum Medicine packing machine
Quick Details
Brand Name: sl Type: Packing Machine Condition: New
silver: other

Specifications
The machine is suitable for packaging of soft bags of granular materials in the field of food, daily chemical and medicine etc.
The machine is suitable for packaging of soft bags of granular materials in the field of food, daily chemical and medicine etc.
The machine is suitable for packaging of soft bags of granular materials in the field of food, daily chemical and medicine etc. It adopts stepless
bag length adjustment and adjustable volumetric cups control filling. Its suitable for single Paper/PE, Cellophane/PE, Plated aluminum/PE,
BOPP/PE, Nylon/PE, and other heatable sealed laminated film as packaging material.

Parameter
ModelSLP-P20SLP-P40SLP-P-80SLP-P180
SLP-P500SLP-P1000
Packing speed
(bag/min)
50-10050-10035-7525-80 25-70 25-60
Packing volume(ml)
2-205-4030-8010-180 50-500 100-1000
Dimension
(mm)
900×700×170900×700×1701000×800×18001000×800×1900 1100×800×1900 1200×900×2000
Power(kw) 1.5  1.5 1.7 1.5 1.8 1.8
Weight(kg)300300350

Monday, 26 March 2012

CE Approved Medicine Packaging Machine


CE Approved Medicine Packaging Machine
Quick Details
Place of Origin: Zhejiang China (Mainland) Brand Name: KD Model Number: GD8-200A
Type: used packing machinery Packaging Material: Plastic Automatic Grade: Automatic
Application: Food Condition: New Packaging Type: pouch
Driven Type: Electric Juice packing machine: Beverage packing machine Thick liquid packing machine: Rotary packing ma...

Specifications
Medicine packing machine can fill objects into premade bags or premade pouches and seal the bags or pouches
Medicine Packing Machine
Function and Characteristics:
1. Clip the bag, print codes, open bags, fill and vibrate bags, heat and seal bags, truing and output packages.
2. Totally automatically controlled by computer. Adopting imported PLC and actuator,
operate reliable and safe, maintain easily, without pollution.
3. The machine that adopts frequency governor to regulate the speed. 4. As the having printed & heat sealed package bag that the bag have a complete pattern,
a good quality sealing and very low bag broken rate.
5. The shaping step is especially designed to keep the sealing from breaking, so
the sealing is flat and smooth.
6. The machine adopts advanced plastic spraying technology, while the parts that
contact the materials choose stainless steel. So with a good standard hygiene, anticorrosive
and long service time.
7. According to the packing materials' demands, can choose automatic metering mechanism,
automatic screw filling machine, intelligent function scale and other products
suitable for automatically metering, which combined into an automatic assembly
line (Also can pack through hand giving material).
Scope Of Application: Granular medicine, capsule, sofe capsule, chrysanthemum tea,
wushi tea etc.
Specifications:
Specialized in powderScaling Scope: 5-1500g
The style of Packaging bag: Portable bag, Hand luggage, Zipper bag, Edging bag 4
side, Edging bag 3 sides, Paper bag
Speed: 60packs/min(max)
Size of bag: 100-210mm(W)x 350mm(L)
Total Power: 2kwPrecision: 1g

Sunday, 25 March 2012

Thermoform Package Machine


Thermoform Package Machine
Quick Details
Place of Origin: Zhejiang China (Mainland) Brand Name: Shenghe Model Number: PZB-46
Type: Packing Machine Packaging Material: wooden case Automatic Grade: Automatic
Application: Medical Condition: Used Driven Type: Pneumatic
Certification: International Type: General Usage: pack medical products

Specifications
We can also redesign the model of this packing machine according to different customer packing sample.

Main features
1.The apparatus is suitable for paper/plastic composite packing, plastic/plastic composite packing and hard membrane packing.
2.If the soft printer is equipped to this apparatus, it is able to print words and graphs directly.
3.Adopt color code tracking device, it can be suitable for double edition packing demand.
4.Easy to pack various products just by changing the mould.
5.The spare parts of this machine are covered by stainless steel and aluminum alloy, thus ensure the clean bacterium-free products.
6.The electric pneumatic compoents are imported from Mitsubishi, OMRON, SMC etc., and the vacuum pump is from BECKER, working well for a long time without any  malfunction.

Speicification:

Maximum packing width:     460mm
Minimum packing width:      19mm
Maximum packing length:      398mm
Maximum plastic-forming depth:  60mm
Working cycle:                5-8s
Film width:                   483
Paper width:                   475mm
Power:  380V×50HZ×9KW×3P+N+PE
Extra air-pressure   ≥0.6Mpa
Cooling water:40L/Min
Weight:      abt. 2t

Saturday, 24 March 2012

Automatic traditional Chinese medicine pill-making machine


Automatic traditional Chinese medicine pill-making machine
Quick Details
Place of Origin: Guangdong China (Mainland) Brand Name: Fengxiang Model Number: YW-60
MATERIAL: stainless steel
Specifications
This machine can produce honeyed, condensed, water with honeyed, watered pills, and pilled foods, including coating and baking
Detailed Product Description:

This machine is applied to making pills with powdery medicinal materials.
This machine can produce honeyed, condensed, water with honeyed, watered pills, and pilled foods, including coating and baking.
This machine is widely used in small factories, lab of the large and medium pharmaceutical plants,
Research institutes of traditional Chinese medicine, hospitals, private clinics, traditional Chinese medicine shops, site processing and sale units for famous and expensive nourishing products, pilular foods exploiture in food factories.
This machine has heating and rotating baking device, making the finished pills even and beautiful.
Outside and all parts contact with materials are made of stainless steel, meet the GMP standard.
Its power supply is single-phase, convenient for operation.

There are some counterfeit products on market now. For its good application, please keep away them.

Technical parameters
Pill sizeDiameter:3mm,4mm,5mm,6mm,7mm,8 mm
Capacity3-20 kg/h
Pill availableCondensed, water with honeyed, watered pills and pilled foods, including coating and baking
Power0.22KW,220V/50HZ 1 phase
Weight150 kg
Overall size1000*400*800 mm


Thursday, 22 March 2012

Vacuum emulsifying machine

Vacuum emulsifying machine

Quick Details
Place of Origin: Zhejiang China (Mainland) Brand Name: Meizhihe Application: cream,ointment, shampoo, lotion
Type: Emulsifying Machine working capacity(liter): 5-5000 min production(liter): 500
jacket pressure(Mpa): 0.3 mirror polish grade: 350MESH high speed homogenizing(rpm): 0-3500
jacket material: SUS304 material contacting parts: SUS316L
Specifications
1. GMP standard
2. CE certificate
3.Effective capacity:1000L
4.Meterail contacting parts SS316L
KRZRJ-1000  vacuum emulsifying mixer

1.Total volume: 1300L
Working volume: 1000L
Minimum production: 500L
Jacket pressure: 0.3MPa
Structure: Top standard oval-shaped sealing head is connected with flange.
Bottom standard oval shape sealing head is connected with body of tank,  with
jacket and thermal insulation layer.

2 .All parts contacting with material adopts SUS316L stainless steel. The internal layer is mirror polished up to 350 MESH grade, Ra≤0.4μm, thickness of the material: 8mm.

3 .The  jacket adopts SUS 304 stainless steel,  thickness of material: 6mm.
Between the internal layer and jacket, there is diversion channel for heating or
cooling by steam or cooling water.

4 .The thermal insulation layer adopts rock wool or PU. When jacket is heated by steam, the temperature of the external body of tank is less than 40°C. The external layer of the tank body adopts SUS304 stainless steel.  The external surface of tank is polished up to Ra≤0.4μm. Thickness of the material: 2mm. All the welding seams adopts flanging arc transition after polish.

5 .Top sealing head attatched: liquid inlet Φ38mm FDA standard (equiped with sanitary grade  butterfly valve and  stailness steel pipe filter), vacuum hole Φ25mm, compressed air inlet Φ20mm, vacuum breaking hole Φ38mm( equiped with 0.22μm dust-proof aspetic breather),sight glass with light DN100mm (the glass adopts stalinite with thickness of 10mm), two CIP cleaning balls Φ25mm ,particle
inletΦ38mm(with cover) ,sanitary grade diaphragm style pressure guage and pressure sensor switch.

6 .Bottom attached: material outlet Φ50mm ( equiped with sanitary grade pneumatic
bottom valve),PT100 temperature senor(0-150°C).

7 .High shear vortex emulsifying mixer: 15KW, 0-3500r/min ( variable frequency control).

8 .Slow speed wall scraping stirring:
frame style wall scraping stirring (clockwise): 4KW, 0-45r/min, variable frequency control.  The material of scraper is made of asepsis PTEF . The scraper can be easily removed by people without  tools.  Middle stirrer (anti-clockwise) and  scraper adopt the same reducer.

Wednesday, 21 March 2012

FZ granulator mill

FZ granulator mill

Quick Details
Place of Origin: Zhejiang China (Mainland) Brand Name: XIAO LUN Model Number: FZ
Application: Powder Type: Granulator stainless steel: granulator / multi-mill
Material: stainless steel Usage: granulating wet or dry material Standard: GMP
Specifications
1. GMP granulator for granulating wet or dry material, etc
2. Mainly for pharma or food industry.
3. High quality granulator

FZ Series Grinding and Granulating Machine

General description
FZ series grinding and granulating machine is used in pharmaceutical, food, fine chemical processing industries. This machine reaches the world advanced level and conforms to the GMP specification. It is wholly made of stainless steel material.

Working principle
The material to be processed enters into the feed inlet of grinding and granulating machine, then drops into the conical sieve chamber. The rotary knife plays a whirling action to the material, and throws the granules to the sieve mesh surface by centrifugal force, meanwhile, the granulates are ground into particles by the shearing action produced by the rotary knife and the sieve mesh, and discharged through the sieve apertures. The size of ground particles can be adjusted by the sieve mesh number, the gap between rotary knife and sieve mesh, and the rotary speed.

Usage
Pharmacy
1.  Grinding of raw material
2.  Granulating of wet material
3.  Granulating of dry material
4.  Unqualified tablets to be recycled can be granulated according to the requirement of granularity
Food: Grinding of biscuit for recycling
Others: Grinding and granulating of rough raw material
Grinding and granulating of lump raw material.

Features
  1. Thoroughly solving the tough problem of material contaminated by the debris of worn sieve mesh in a pendulum-type granulating machine.
  2. The unique patented shaft sealing technology ensures no leakage of lubrication oil.
  3. Easy to control granularity
  4. No retention dead corner, no material overheating.
  5. Less dust, no vibration, low noise.
  6. High efficiency, energy saving, large production capacity.
  7. Attractive appearance ,easy to clean
  8. A-type machine apply to the work requirements of 100-grade workshop
Main technical parameters
Model
FZB-150(A)
FZB-300(A)
FZB-450(A)
FZB-700(A)
FZB-1000(A)
Capacity (kg/h)
15-150
30-300
45-450
70-700
100-1000
Granularity(mesh/in)
6~80
Drive seat temperature rise
<30 degree centigrade
Range of speed regulation(rpm)
FZB series frequency control 300-3600
Motor power(kW)
1.5
1.5
2.2
3
5.5
Overall dimension (L×W×H) (mm)
720×445×1345
810×445×1345
920×445×1430
1000×500×1530
1100×600×1875
Height from ground to discharge mouth (mm)
650
650
690
690
700

Tuesday, 20 March 2012

Liquid packer

Liquid packer

Quick Details
Place of Origin: Anhui China (Mainland) Brand Name: KOYO Model Number: XY
Type: Filling Machine Packaging Material: Plastic Automatic Grade: Automatic
Application: Beverage Condition: New Packaging Type: Other
Driven Type: Electric HIGH QUALITY: LOW PRICE
Specifications
KOYO XY widely used for various kinds of liquid packing such as: milk, soya-milk, peanut milk ,juice, drinks,ice bag drinks
This packer has passed the provincial appraisal and expertise, all the performance indexes reach the Chinese advanced level of similar products and won the gold prize for patent Inventio n, In 1995 ,it passed the test of the State Bureau of Quality and Technical Supervision and was rated as standard This series has been long-tested and its performance enjoys a very high reputation, Up to now, we have owned more than 10000 users in china, they all reflect that this series is simple in operation and runs smoothly with low failure rate. The percentage of certified products is greater than 99%.
Film width320 240MM
 Packing capacity1500-2000bag/hour
 Voltage 220v/380v (to your choice)
Power 1.2kw
 Filling precision ±1%

Pcking  200-500ML.70-350ML
 Machine weight 650KG
 Overall dimension 1050*750*1900MM

Main uses:
It is widely used for various kinds of liquid packing such as: milk, soya-milk, peanut milk ,juice, drinks,ice bag drinks, soy-sauce, vinegar. Yellow rice wine and beancurd, and etc. Use single-layer PE film or two-layerorthree-layer co-extrusion film as packing materials.

Monday, 19 March 2012

Rotary high frequency packing machine

Rotary high frequency packing machine

Quick Details
Place of Origin: China (Mainland) Brand Name: Wanli Model Number: GP5-H1
Type: Blister Packaging Machine Packaging Material: Plastic Automatic Grade: Semi-Automatic
Power: 5KW Application: Other Condition: New
Driven Type: Pneumatic Usage: Outer Type: Rotary

Specifications
High frequency machine, it can weld PVC or PVC related bag ,blister with blister, blister with cardboard ,inflatable toy and etc
Main uses: plastic packaging (including heat sealing and  trimming for upper & lower blister, heat saling and trimming for blister and cardboard), automobile ornaments, sunshade, trademarks, garments, shoe and capembossing, leather embossing; gas mattress, boat, life jacket, toy; stationery, raincoat, plastic cover; kinds of medical infusion bag, blood bag, portable soft bag; it can be used for pressing kinds of concave-convex figures and characters. Equipped with some simple device, it also can be used for bronzing.

Features:
(1)High automation: upper mould down-heat seal and edge fusion -cool and definite form-upper mould lift can be preset as well as can be finished at one time.
(2)Anti-jamming: hunting frequency 27.12MHz,30.56MHz,40.68MHz, accord with international standard and little jamming to outside equipments.
(3) Fireproof: high-grade high-sensitivity spark killer device is available with good reliability and effect. Meanwhile it is equipped with overload current protection device. At emergency it can cut off high voltage automatically to protect electron tube and elements.
(4) Equipped with auto-positioning system, it is more accurate with little deviation.
(5) Large-duty power output, it is much quicker and efficient .
(6) Pneumatic, hydraulic and static device is adopted with even pressure for user to choose.


It has 3-station, 4-station and 6-station and equipped with adjustable electric power output and manipulator unloading.

Sunday, 18 March 2012

On line High Shear Emulsifier

On line High Shear Emulsifier

Quick Details
Place of Origin: Shanghai China (Mainland) Brand Name: SIEHE Model Number: SRB Series
Type: One stage
Specifications
On line High Shear Emulsifier is for emulsfying, dispersing and emulsifying materials with precision engineered stator & rotor.
On line High Shear Emulsifie
1. Reference Parameter
Model
Motor
(kw)
Flow
(m3/h)
Speed
(rpm)
Inlet
(mm)
Outlet
(mm)
SRB1.1/1/2
1.1
1
2930
DN32
DN25
SRB1.1/1/6
1.1
0.8
2930
DN32
DN25
SRB4/1/2
4
6
2930
DN40
DN32
SRB4/1/6
4
5
2930
DN40
DN32
SRB7.5/1/2
7.5
8
2930
DN50
DN40
SRB7.5/1/4
7.5
7
2930
DN50
DN40
SRB7.5/1/6
7.5
7
2930
DN50
DN40
SRB11/1/2
11
12
2930
DN50
DN50
SRB11/1/4
11
11
2930
DN50
DN50
SRB11/1/6
11
10
2930
DN50
DN50
SRB18.5/1/6
18.5
16
2930
DN65
DN50
SRB22/1/6
22
20
2930
DN80
DN65
SRB30/1/6
30
28
2930/1450
DN100
DN80
SRB37/1/6
37
35
2930/1450
DN125
DN100
SRB45/1/6
45
42
2930/1450
DN150
DN125
SRB55/1/6
55
50
2930/1450
DN150
DN125
2. Working Principle
The high linear velocity (generated at the high speed rotating rotor of the High-shear Homogenizing Emulsifier) and strong kinetic energy (generated by the high frequency mechanical effect) put the materials under comprehensive action such as strong shearing, centrifugal extrusion, hydraulic friction, crash etc between the precision gap of the stator and rotor. As the result, the solid phase, liquid phase and gas phase which is insoluble at beginning will prompt evenly dispersed and emulsified after adopting mature production processing and proper quantity additives.
3. Main Features
Inline High-shear Emulsifier consists of one set of precision engineered stator and rotor inside the chamber. The strong centrifugal forces generated by the high speed rotation rotor absorb the materials into the working chamber of the rotor and stator from axial direction. All the materials dispersed, sheared and emulsified by the multi-layers Stator & Rotor and then ejected from the axial direction. Stable finished products with high quality are produced after one time circulation or times.
Remarks:
*The above listed Max. processing capacity is calculated as per water as medium. The model selection should depend on the comprehensive factors such as materials viscosity, specific gravity etc.
*If works under special environment such as high temperature, high pressure, explosive, combustible, corrosive etc, correct data is required for correct model selection.
*The above data and picture is subject to change without notice. The accurate parameter should be subject to the object.

Saturday, 17 March 2012

Ointment Cream & Lotion Processing Plant


Ointment Cream & Lotion Processing Plant
Quick Details
Place of Origin: Gujarat India Brand Name: HI Application: Creams, Gels, Conditioners, Lotion...
Type: Mixing Machine Type: Processing & Manufacturing Plant

Specifications
We are the leading manufacturer and supplier of cream manufacturing plant.

OINTMENT CREAM & LOTION PROCESSING PLANT

Ointment manufacturing Plants are ideal tools for the pharmaceutical & cosmetic industries cosmetics, herbals and other industries for the production of face creams, lotions, tooth paste hair oil, conditioner, shampoo, skin care.

Capacity available (in ltrs.) : 300, 500, 800, 1000.

Cream & Lotion plant apply to cream,cosmetics,food, chemical raw materials..

Friday, 16 March 2012

Semi-auto Tray Sealing Machine (DM-350B)

Semi-auto Tray Sealing Machine (DM-350B)

Quick Details
Place of Origin: Zhejiang China (Mainland) Brand Name: DAJIANG Model Number: DM-350A
Type: Sealing Machine Packaging Material: Plastic Automatic Grade: Semi-Automatic
Power: 1.9KW Application: Food Condition: New
Packaging Type: TRAY Driven Type: Electric and Pneumatic packing material: plastic
Specifications
1.OMRON PLC
2.304 Stainless Steel
3.The mould can be replaced easily
4.This tray sealer suitable for keeping food fres
Technology Specifications
Model
DM-350A
Packaging Tray Dimension(mm)
465×245×80
Max Width Of Film(mm)
300
Max Diameter Of Film(mm)
280
Packaging Speed (time/min)
6-8
Electrical Requirement
1P/220V / 50HZ
Working Pressure(mpa)
0.6-0.8
Consume Power(kw)
1.9KW
Air Consumption(m³/h)
0.07
Machine Weight(kg)
280
Machine Size(mm)
840×1050×1500


DM-350A,Semi-Automatic tray sealer, which is suitable for packing snack, meat, poultry, sea food, fruit and vegtables, bread and cake ect.
DM-350A has compact designs, high speed of package, convenience of maintenance.
DM-350A supported by a wide assortment of trays and easy for operater to change the difference tray moulds.
DM-350B (MAP type) is the best choice for the food that need to be retained much freshness.

Technical Characteristics:

1, OMRON PLC Programmable Control System.

2, OMRON Human-computer Interface Touch Screen: Easy for operation.
3, Fault Alarm: Assurance the user easily operation.

4, AIRTAC Pneumatic Elements: Assurance machine running smoothly.
5, 304 Stainless Steel Main Structure Material: Assurance the nice appearance and machine against bad condition, prolongation using period of the machine.

6, Various language optional can be chosen according to the customer requirements.
7. Easily Replaceable of Sealing Mould: Different size of the trays are available  for one machine.

8, Automatic code tape printer could be option.
9, Heavy-Duty Moveable Caster (With Brake): Moving the machine safely.


Thursday, 15 March 2012

Vertical barrel extraction tank

Vertical barrel extraction tank

Quick Details
Place of Origin: Zhejiang China (Mainland) Brand Name: DAPU Model Number: DPM012
Application: Liquid Material: Imported stainless steel Type: Extractor

Specifications
1.extraction tank
2.made of stianless steel
3.high quality and low price
4.prompt delivery
  The equipment serves as normal pressure water decoct and pressured decoct,temperature dip,thermal influx and compellent cycle, infiltration and extraction of aroma oil and reclaim of organic solvent, etc in such in -dustries as pharmacy, vegetable ,animal ,food and chemistry ,especially effective in the case of dynamic extraction or inverse extraction ,featuring short time of extraction and high pharmacy content.

Model
TQ-Z-1.0
TQ-Z-2.0
TQ-Z-3.0
TQ-Z-6.0
TQ-Z-8.0
TQ-Z-10
Specification
Volume
1200L
2300L
3200L
6300L
8500L
11000L
Inner pressure
0.09Mpa
Tank pressure
0.3Mpa
Compress air pressure
0.6~0.7Mpa
Powerconsumption (Kg/h)
245
325
345
645
7200
8500

Wednesday, 14 March 2012

Canan stainless steel tank IBC


Canan stainless steel tank IBC
Quick Details
Place of Origin: Zhejiang China (Mainland) Brand Name: Canaan Model Number: LT/LD
Material: Stainless steel Application: Powder/granules Volume: 50-200 Liter
Type: Other

Specifications
1.Canaan stainless steel tank IBC
2.Quality assurance ( CE,CQC,GMP,ISO,etc)
3.OEM acceptable
Canaan stainless steel tank IBC
LT Drum,to use with NTG,NTY,NTS Pharma Lifter for Materials Transfer
Material: SS304; SS316L



11111

Tuesday, 13 March 2012

Tunnel Hot-air Circulating Heating and Sterilizing Oven for Bottles

Tunnel Hot-air Circulating Heating and Sterilizing Oven for Bottles
Quick Details
Place of Origin: Shanghai China (Mainland) Brand Name: SS-1828 Usage: food,chemical,beverage,industrial
Automatic Grade: Automatic Type: Sterilizer Condition: New
Material: Stainless Steel
Specifications
bottle sterilizing oven
meet GMP standard
imported PLC control
touch screen system
30 days delivery time
Brief Introduction
    The SS-1828 tunnel hot -air circulating heating and sterilizing oven is applied for drying and sterilizing antibiotic bottles ,ampoules and infusion bottles
1. meet GMP standard
2. hot-air circulating heating mode make uniform temperature and low energy consumption
3. complete 100stage laminar flow purifying device
4. adopt PLC control and touch screen for display and operation
5. adopt advanced intelligent control device to record tempreture,air volumn and speed of network
6. reliable safety installations
7. water cooling system is for optional ;it can decrease fresh air supply from the washing room and reduce the risk from the wind differential pressure imbalance ,good cooling effect.
8. Wind differential pressure auto-balance system is optional ,it can make the air flow from heating section not move and steady ,it can avoid series of trouble,such as the temperature increasing in filling room and washing room

Main Technical Parameters
Power Supply380V, 50HZ
Gross Power≤53KW (about 40KW for proper use)
Temperature  Adjustable Range300ºC-500ºC
Conveyer Belt Width600mm
Purifying Stage of Laminar Flow100stage
Cooling  Mode100stage vertical laminal flow cooling
Air Speed Controlfrequency conversion mode
Weightapproximate  3500KG
Noise of  Single Unit≤70dB
Dimension4400(L)×1650(W)×2400(H) mm
Production Capacity10ml pencilin vial ;200-300pc/min

Monday, 12 March 2012

Full automatic flute laminator machine


Quick Details
Place of Origin: Hebei China (Mainland) Brand Name: baoli Model Number: 1300mm
Type: Laminating Machine Packaging Material: Paper Automatic Grade: Automatic
Power: 12kw Application: Machinery & Hardware Condition: New
Packaging Type: Cartons Driven Type: Electric
Specifications
Introduction
automatic Carton flute laminating machine are designed for laminating cardboard and cardboard, cardboard and corr
Introduction
automatic Carton flute laminating machine are designed for laminating cardboard and cardboard, cardboard and corrugated board (Flute shape A, B, C, D, E, F and N), 3-layer, 5-layer, or 7-layer corrugated paperboard all can be laminated smoothly and accurately. Famous internal or foreign foreign manufacturers make all the main components with long service life and excellent stability. Electrical components of internationally known brands are adopted to ensure reliability of running.
This machine features stability, high precision, easy operation, saver of time and labour, maintenance of convenience, etc.

 Characteristics
1. Automatic Flute Laminating machine adopts chain pusher and back registration system together with spring blade side lay and vacuum sucking conveying system makes this series of machine fit for a larger range of paper, high precision while remaining the features of easy operation and maintenance.
2. The core designed rubber roller together with knurled steel roller enhances the evenness of gluing, strength of stickiness, as well as lowering the production cost.
3. Balance-tested rollers, tight assembling technique, plus timing and tooth belt driving mechanic system makes the machine runs at low noise with high precision.
4. The machine adopts automatic glue supply and recyclable glue circulating system.
5. Self-developed high-strength feeder compliant with high configuration electric system makes the machine run at low malfunction and stable. The electric parts used are all world wide available brand or well-known Chinese brand.
6. All material are inspected according to ISO-9001 standard and the key parts such as the harmonic gear and bearings are imported ones.
7. The bottom sheet for this machine can be A, B, C, D, E, F flute corrugated sheet. It can do 3 or 5 ply board to sheet lamination or board to board lamination. The range for top paper can be 200-600 GSM with top paper advance or alignment function.
Detail Parameters
Model
1300
1450
1600
Maximum size(W×L)
1300×1100mm
1450×1100mm
1600×1400mm
Minimum size(W×L)
350×350mm
350×350mm
450×450mm
Laminate precision
≤±1.5mm
≤±1.5mm
≤±1.5mm
Speed
6000s/min
6000s/min
6000s/min
Total power
12kw
12kw
13kw
L*W*H( m)
12.5*2.15*2.6
12.5*2.3*2.6
12.6*2.45*2.6
Total weight
6.8T
7.2T
8.0T
Full automatic flute laminator machine

Sunday, 11 March 2012

Semi-automatic pharmaceutical powder filling machine

Semi-automatic pharmaceutical powder filling machine
Quick Details
Place of Origin: Guangdong China (Mainland) Brand Name: Ghamachine Model Number: GHSPF-S
Control Mode: Semi-Automatic model: desk-type
Specifications
1.Desk-type sterile powder filler; auger feeding, high filling precision
2.Filling via auto time control or foot-pedal control
Product Description:This desk-type powder filling machine is with small volume and high flexibility, it is one of the best equipments for pharmaceutical, new product developing, researching and laboratory usage. It can be put on the working bench so that to operate and produce conveniently. Characteristics: 1. Micro-processor set the filling dosage;
2. Easy operation and stable production;
3. Suits for the filling of all kinds of medicine sterile powder injectable, or health powder
4. Convenient cleaning and sterilizing;
Main technical parameter:
Filling dosage range10ml-100ml(needed)
Filling dosage error≤ 1%-3%
Filling speed15-25 times/min
Power supply220V 50/60Hz
Power0.1 KW
N. W.25
Dimension300× 300× 150(mm)
Material madeAll parts contacting with material is SUS316

Saturday, 10 March 2012

BGB coating drum

BGB coating drum

Quick Details
Place of Origin: Chongqing China (Mainland) Brand Name: CQJG Model Number: BGB
Usage: Pharmaceutical material: 316L color: gray
Specifications
1quick dismount drum without tools
2negative pressure working condition
3speed adjustable
4 easy changeable
5high efficiency

this component is a part of BGB series high- efficiency film coating machine.it is help for pharmaceutical, food ,chemical research and development.

moreover, the part is easy changeable wich can save more time for users to raise the efficiency. Negative pressure working conditions can make high quality products.  And coating drum speed is adjustable.

Friday, 9 March 2012

Induction cap sealing machine SR-6000A


Induction cap sealing machine SR-6000A

































Quick Details
Place of Origin: Guangxi China (Mainland) Brand Name: XINYAN Model Number: SR-6000A
Usage: pesticide, pharmacy, health products, co... usage: sealing

Specifications
1 tunnel type sensor
2 water cold, 4000W
3 automatic,no preheating,CPU module
4 20-150mm induction cap sealing machine
SR-6000A  Induction cap sealing machine
Application:
The machine is specially designed for industries like pesticide, pharmacy, food, cosmetics, ect.. it can seal the bottle perfectly, automatically switch from ultra-small diameter (10mm) to super-large (200mm) as well as high-shaped nozzle cap. It will brings customers the greatest economic benefits.
Features:
1 Sensor head has a unique tunnel-type structure, multi-faceted and three-dimensional heat mode make the seal results. Even though there is residual on the gargalo, it can sealing perfectly.
2 Operation without Pre-heating process, operate simply, maintain easily
3 Using high-quality stainless steel structure, the design of machine is reasonable, beautiful and generous. All manufacture progess is according with GMP system.
4 Host generator use the latest imported transisitor from America. CPU model controling, power adjustable, digital display.
5 unique switching power supply design, ensure a constrant output power.
6 water cooled, high speed continuous work, efficient and long running working up to 24 hours.
7 Sensor head with bold copper tubes, you can sue ordinary tap water, which can be reduced the cost.
8 Movable, it can use to productio line very convenient and flexible.
SR-6000A
Specification
Sealing Diameter/Cap Size10mm-80mm & 80mm-200mm
Sensor Head Length 480mm & 300mm
Conveyor Speed 0-25m/min
Sealing Speed400 bots/min(PE bottle with 30mm diameter, for example)
Power Supply4000W, 220V, 50/60HZ
Machine External Dimension(L x W x H)500mm X 500mm X 1090mm
Machine WeightAppr. 80kg
Package Size( L x W x H)600mm X 600mm X 1300mm
Package WeightAppr.95kg
 finished products
