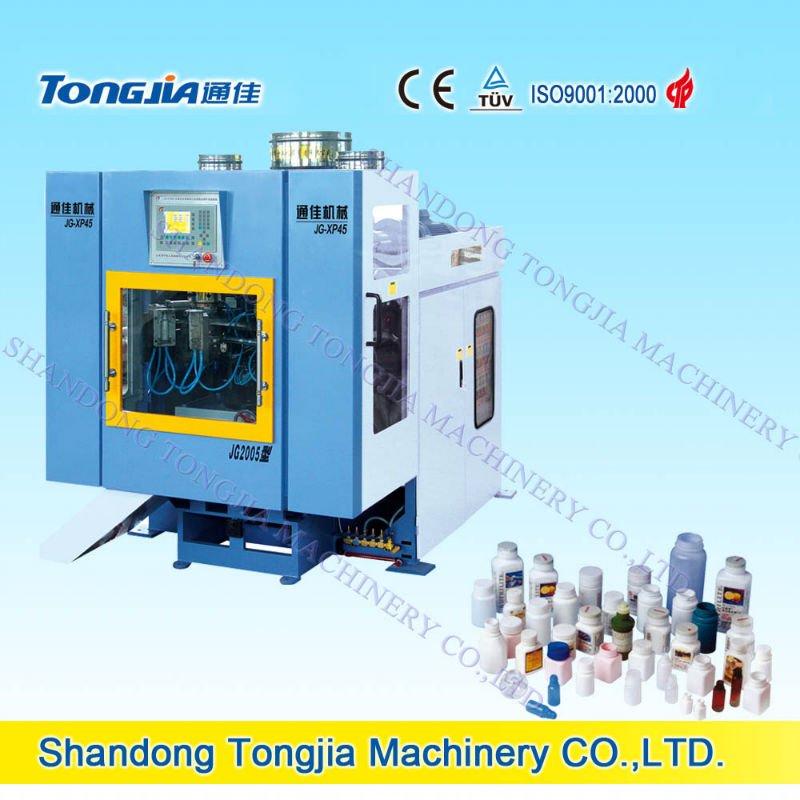

Small Medicine Bottle Making Machine

Small Medicine Bottle Making Machine
Quick Details
Place of Origin: Shandong China (Mainland) Brand Name: Tongjia Model Number: JG-XP45
Plastic Processed: PP Application: Bottle Blow Moulding Type: Stretch Blow Moulding
Automatic: Yes Condition: New dia. of main screw: 45 mm
L/D ratio of screw: 25 L/D air consumption: 0.4 m3/min air pressure: 0.7 MPa
Specifications
1.rotary tetra work station
2.high barrier
3.CE certificate
Series Of Rotary Tetra-Work Station Auto Blow Molding Machine,medicine bottle making machine is mainly used for producing small medicine bottle and presticide bottle and cosmetic bottle,et.The tetra work station can work together.And it has the features of small investment and large output.It is perfect invest project for middle and small factory and personal.

Model
Single layer
High-resistance(tri-layer)
Material
PE , PP …
Max.capacity of product
L
0.5
Number of die
set
1
Dimensions(L×W×H)
m
2.6×1.6×2.5
Machine weight(approx)
T
3
3.3
Clamping system
Clamping force
KN
30
Distance between platens
mm
120
Max.size of mould(W×H)
mm
225×130
Power
Driving power of main extruder
KW
5.5
Driving power of extruder for agglutinate layer
KW
/
0.75
Driving power of motor for inner layer
KW
/
2.2
Total power (approx)
KW
13
18.3
Water pressure
MPa
0.2-0.3
Water consumption
L/min
25
Air pressure
Mpa
0.7
Air consumption
m3/min
0.4
Average energy consumption(approx)
KW
7
10
Extrusion system
Dia.of main screw
mm
45
L/D ratio of screw
L/D
22
layer
mm
/
20
L/D ratio of screw of agglutinate layer
L/D
/
20
inner layer
mm
/
30
L/D ratio of screw for inner layer
L/D
/
25
