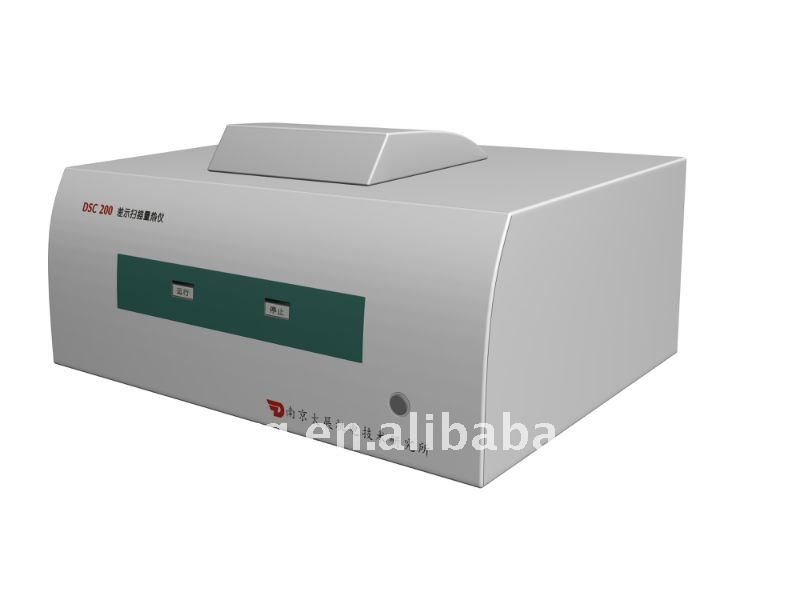

Differential scanning calorimeter Laboratory Heating Equipment(DSC-200)

Differential scanning calorimeter Laboratory Heating Equipment(DSC-200)
Quick Details
Place of Origin: Jiangsu China (Mainland) Brand Name: Dazhan Model Number: DSC-200
type: DSC Meter usage: Testing & quality control(QC) Printer: Samsung
Computer: DELL
Specifications
Differential scanning calorimeter(DSC-200)
# OEM Service offered.
# English Edition offered.
# User-friendly interface.
       Differential scanning calorimeter(DSC-200)

 Product introduction:
   DSC is designed to determine the inner heat transition relating to temperature and heat flow, it is widely used in the field of polymer development, performance testing & quality control. DSC research and development includes the following field: glass transition temperature, melting point, cold crystallization, crystallization, phase transition, oxidation induction time (OIT).

 Main Features:
   1. New designed oven structure ensures high resolution and good stability of base line;
   2. Digital air flow meter may control the air flow rate accurately; the test data can be recorded into the database directly;
   3. The instrument is bilateral control, may be controlled by both main frame and software. User-friendly interface, easy operation.

Technical parameters:

DSC range0~±500mW
Temperature rangeroom temperature ~ 800 °C air-cooled
      - 50 °C ~ 800 °C semiconductor refrigeration *
      - 100 °C ~ 800 °C liquid nitrogen refrigeration *
Heating rate1 ~ 80 °C / min
Cooling rate * 1 ~ 20 °C / min
Temperature resolution 0.1 °C
Temperature fluctuations±0.1°C
Temperature repeatability ±0.1°C
DSC noise0.01μW
DSC resolution0.01μW
DSC accuracy0.1 u W
DSC sensitivity0.1 u W
Control ModeRising temperature, constant temperature, cooling temperature (full automatic programmed control)
Curve scanningRising scan, *cooling scan
Atmosphere controlEmbedded digital flow meter & Software control
DisplayChinese characters liquid crystal display (LCD)
Data interfaceRS232 interface
Parameter standardequipped with standard material (indium, tin, and lead), the user may correct temperature and heat enthalpy
The warranty1 year
Note * for selecting projects, all technical indicators can be adjusted according to customers'demand.

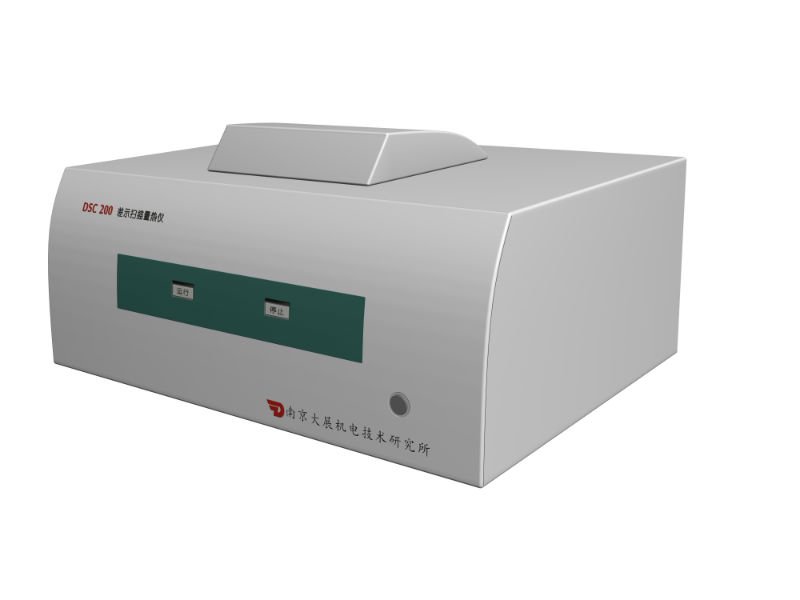

DSC-200
